G4785A - 74HC20 CMOS Logic Dual 4-Input NAND Gate
The 74HC20 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. These devices have the ability to drive 10 LSTTL loads.
Features:
Buffered Inputs
Typical Propagation Delay: 8ns at VCC = 5V, CL = 15pF, TA = 25°C
Wiide Operating Temperature Range . . . -55°C to 125°C
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
2V to 6V Operation
High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V

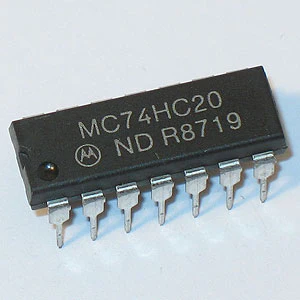

14 pin DIP. Actual brand may vary from picture.
