SOLD OUT! G23900 - (Pkg 20) Bi-Color Red/Yellow SMD LED, Stanley BRPY1205W-RR

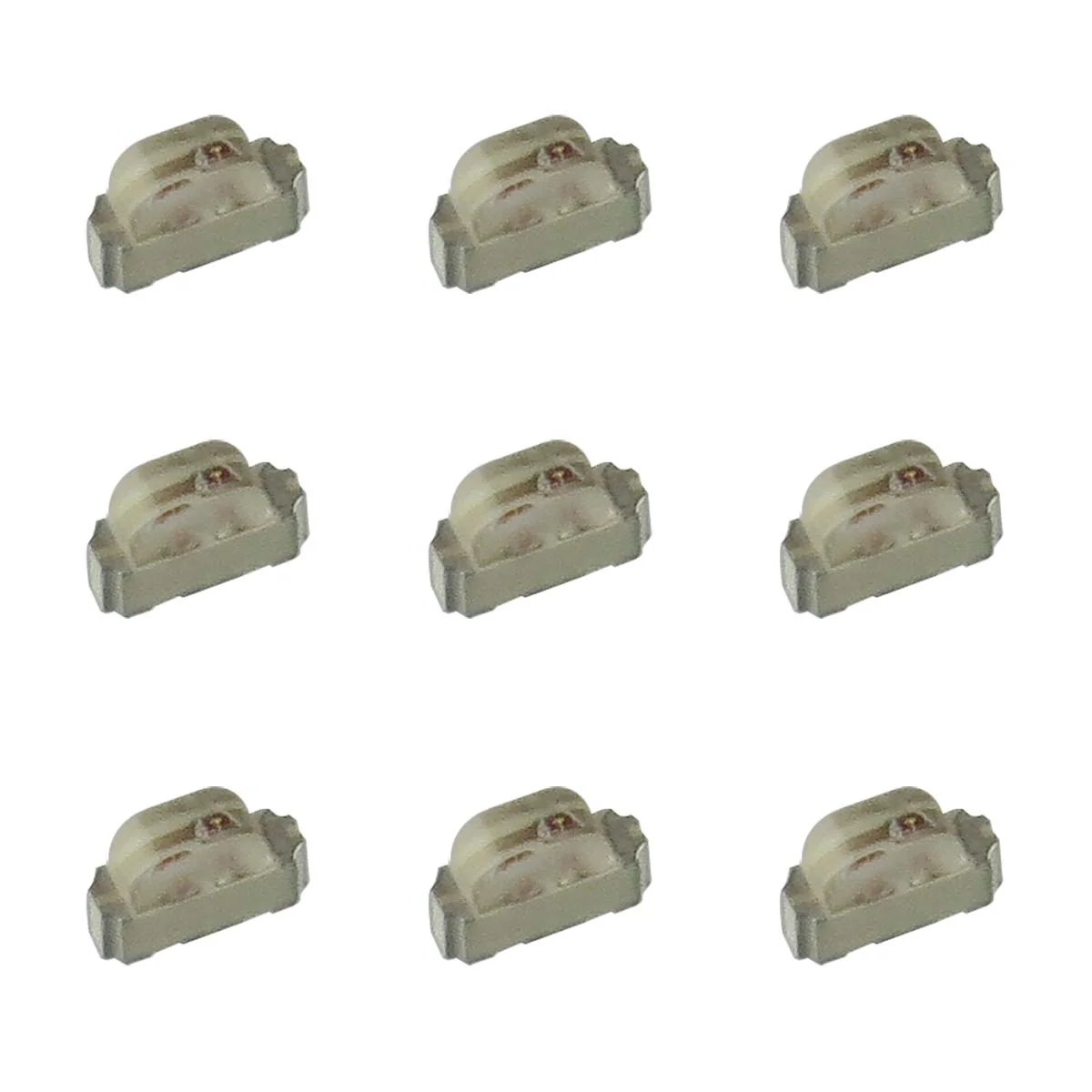

1205W series Bi-Color Red/Yellow SMD LED from Stanley features 2 independent LEDs in a single surface mount package. Maximum forward voltage 2.0VDC (Red) and 2.5VDC (Yellow). Forward current is 30mA. Peak Forward Current (Pulse Width <= 1ms, Duty <= 1/20) is 70mA. Power Dissipation is 75mW. Luminous Intensity (@20mA) is 40mcd (96 mcd max). Do minant Wavelengths are 647 nm (Red) and 572 nm (Yellow). Material is GaAlAs (Red) and GaP (Yellow). Surface mount package with overall size of 3.2mm long x 2mm wide x 1.5mm tall. On tape and reel. Stanley Part# BRPY1205W-RR. Sold in a package of 20.
| Additional Resources |
 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
SOLD OUT! G23900 - (Pkg 20) Bi-Color Red/Yellow SMD LED, Stanley BRPY1205W-RR
SOLD OUT! G23900 - (Pkg 20) Bi-Color Red/Yellow SMD LED, Stanley BRPY1205W-RR
1205W series Bi-Color Red/Yellow SMD LED from Stanley features 2 independent LEDs in a single surface mount package. Maximum forward voltage 2.0VDC (Red) and 2.5VDC (Yellow). Forward current is 30mA. Peak Forward Current (Pulse Width <= 1ms, Duty <= 1/20) is 70mA. Power Dissipation is 75mW. Luminous Intensity (@20mA) is 40mcd (96 mcd max). Do minant Wavelengths are 647 nm (Red) and 572 nm (Yellow). Material is GaAlAs (Red) and GaP (Yellow). Surface mount package with overall size of 3.2mm long x 2mm wide x 1.5mm tall. On tape and reel. Stanley Part# BRPY1205W-RR. Sold in a package of 20.
| Additional Resources |
|
$1.75
Original: $5.00
-65%SOLD OUT! G23900 - (Pkg 20) Bi-Color Red/Yellow SMD LED, Stanley BRPY1205W-RRā
$5.00
$1.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
1205W series Bi-Color Red/Yellow SMD LED from Stanley features 2 independent LEDs in a single surface mount package. Maximum forward voltage 2.0VDC (Red) and 2.5VDC (Yellow). Forward current is 30mA. Peak Forward Current (Pulse Width <= 1ms, Duty <= 1/20) is 70mA. Power Dissipation is 75mW. Luminous Intensity (@20mA) is 40mcd (96 mcd max). Do minant Wavelengths are 647 nm (Red) and 572 nm (Yellow). Material is GaAlAs (Red) and GaP (Yellow). Surface mount package with overall size of 3.2mm long x 2mm wide x 1.5mm tall. On tape and reel. Stanley Part# BRPY1205W-RR. Sold in a package of 20.
