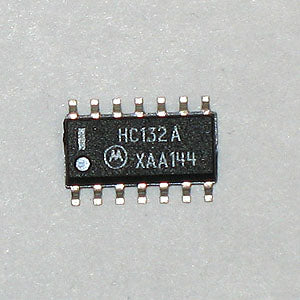

A10467 - 74HC132 SMD IC Quad 2-Input NAND Gate (Motorola)
The 74HC132 is identical in pinout to the LS132. The device inputs are compatible with standard CMOS outputs; with pull-up resistors, they are compatible with LSTTL outputs. The 74HC132 can be used to enhance noise immunity or to square up slowly changing waveforms.
Features:
Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0 uA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 72 FETs or 18 Equivalent Gates
Datasheet Available:Motorola 74HC132
SOIC 14 package. Manufactured by Motorola.
